Description
Perkins EST 2024A with Perkins Comm III adapter 3 Diagnostic Interface

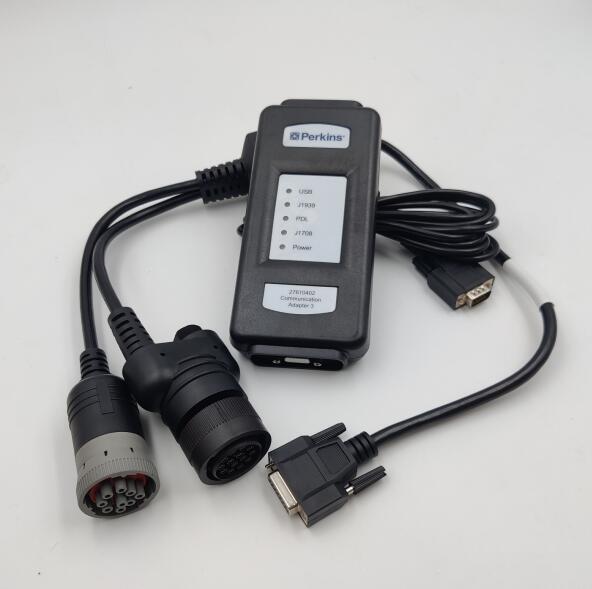

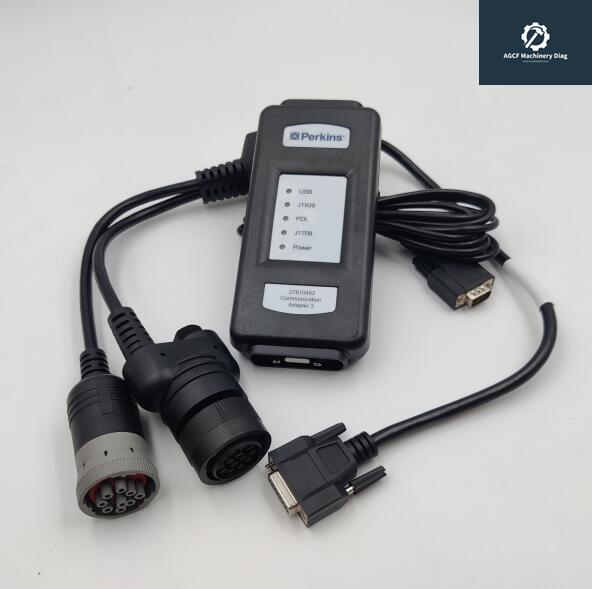

Perkins Communication Adapter (CA3) – is a dealer tool used to connect PC based service tool to Perkins equipment. This is the only recommended communication device for Perkins, and the only what has CAT Data Link (CDL) protocol required to properly communicate with a Perkins engines.

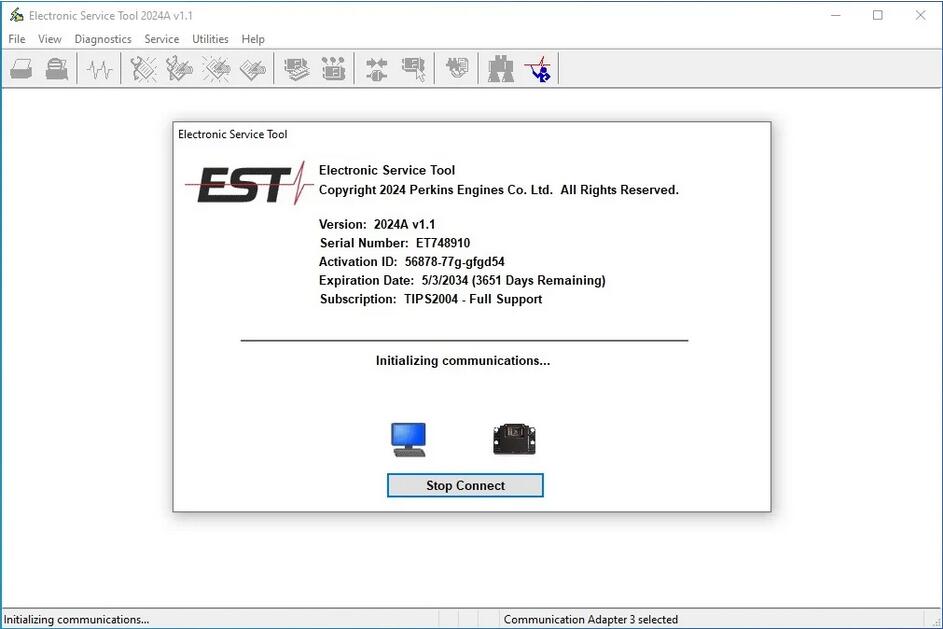

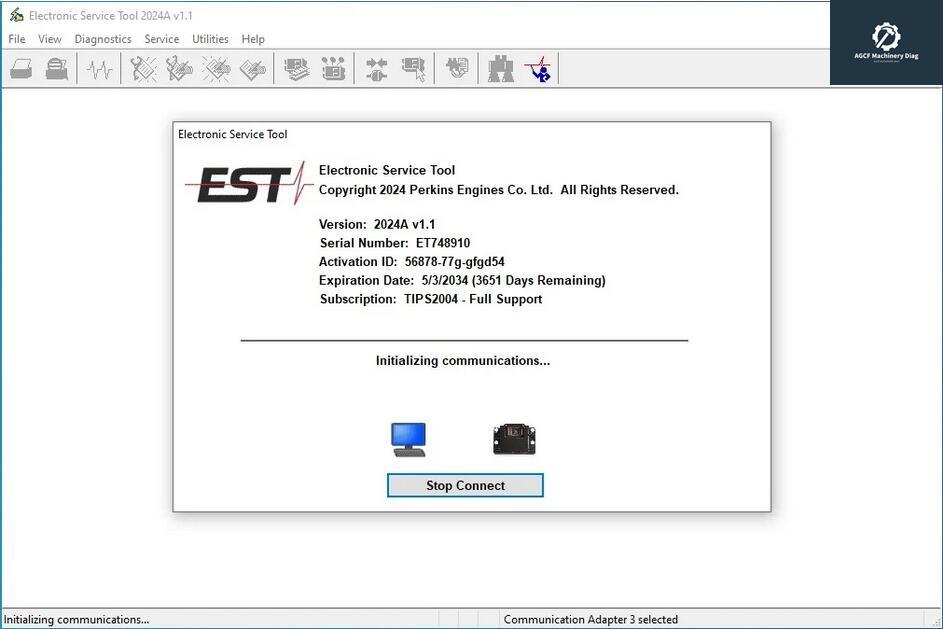

Perkins EST is comprised of a hardware and software PERKINS EST Diagnostic Adapter . EST is comprised of a hardware and software EST is comprised of a hardware and software interface kit, which a user can use to communicate with Perkins 2300/2800 electronic engines (FG Wilson 300 750 KVA range) and FG Wilson Powerwizard control panels. This communication is established via a J1939 data link. All in all, the EST interface kit provides the user with an effective tool in diagnosing engine problems and the ability of configuring system parameters.
Perkins adapter 3 with Perkins EST Features:
Version:2024A
Warranty: 12 months
Availability: in stock
Operate System: Windows 10 and Windows 11
Compatible Vehicle: For Trucks, Excavators, Air Compressors, Ships, Drilling Rigs
Support Multi-Languages
Part number:27610402
Expiration:Never Expired
Activation type:TIPS2004-Full Support
Free shipping by DHP/Fedex/UPS
Price only for one PC installation and activation
Perkins adapter 3 with Perkins EST Function:
Override Powerwizard level three passwords
Configure and/or change system parameters
Display, graph and record logs of parameter status
Display the status of a group of parameters (temperatures, pressures, etc)
View and clear active and logged diagnostic codes
View and clear active and logged event codes
Display, view or change the current Configuration File or Base level Flash File
Upload, download and save configuration files
View a list of irregularities logged by the ECM (engine control module)
Perform diagnostic tests
Perform calibrations
Print reports and diagnostic results.
Perkins adapter 3 with Perkins EST Package Included:
478-0235 Communication Adapter III

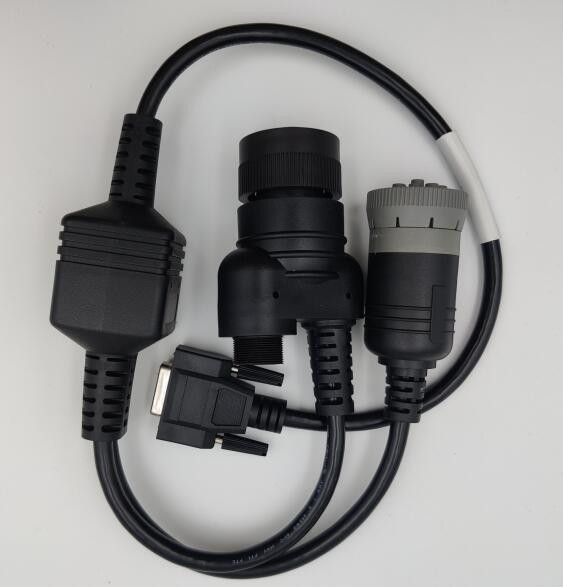

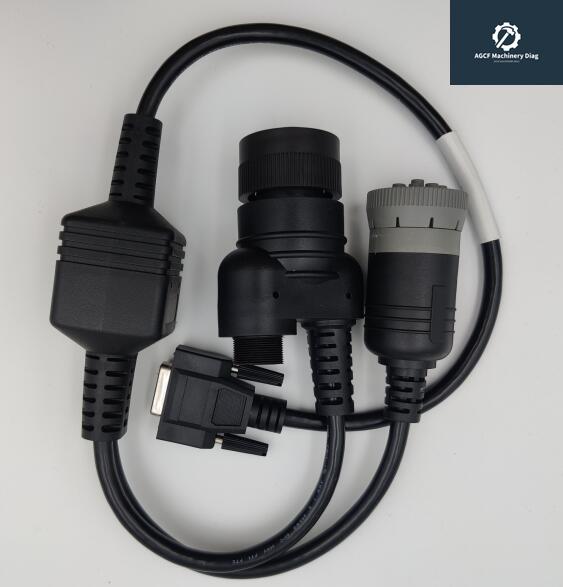

9-pin/14-pin adapter (for machinery)
USB cable
