Description
MTU diagnostic tool USB-to-CAN MTU Diasys 2.74 MEDC ADEC Full Kit diesel engine for MTU diagnosis.
MTU DiaSys 2.74 used to communicate with various MTU controllers, RCS-5 Remote Control Systems and MCS-5 Monitoring and Control Systems.
MTU Engine Diagnostic Tool DiaSys Features:
Update: 2022
Size: 270 Mb
Region: All regions
Type: Diagnostic Software
Language: English, German
OS: Win 7, Win 8, Win 10, WIN 11
Version: v2.72
MTU Engine Diagnostic Tool DiaSys Functions:
Data exchange with the central database;
Controller parameter setting;
Data recording.

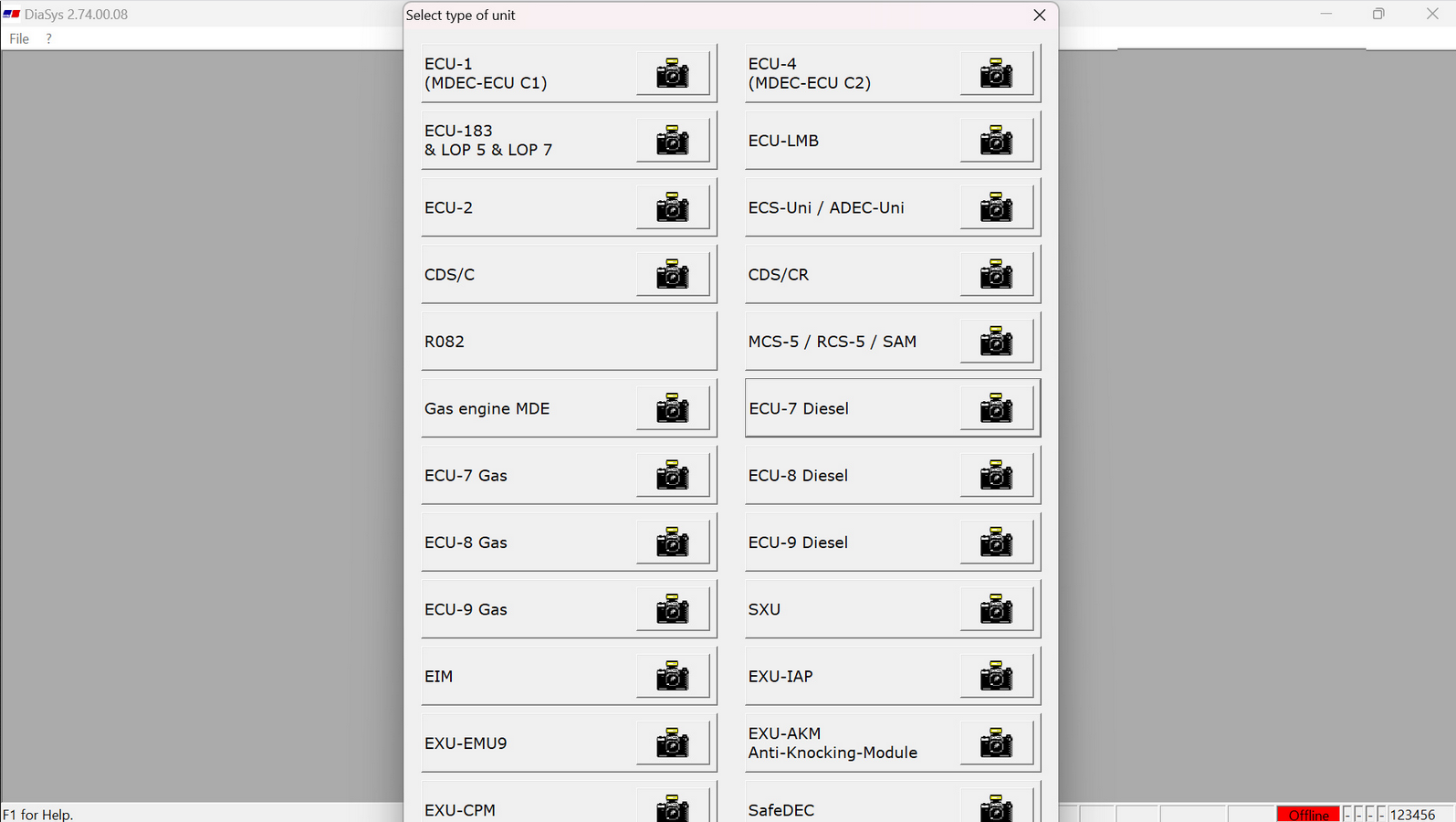

MTU Engine Diagnostic Tool DiaSys Support Models/Units:
ECU-1(MDEC-ECU C1)
ECU-4(MDEC-ECU C2)
ECU-183 & LOP 5 & LOP 7
ECU-LMB
ECU-2
ECS-Uni/ADEC-Uni
CDS/C
CDS/CR
R082
MCS-5/RCS-5/SAM
ECU-7 Diesel
ECU-7 Gas
ECU-8 Diesel
ECU-8 Gas
ECU-9 Diesel
ECU-9 Gas
ECU-9 Bergen Diesel
ECU-9 Bergen Gas
SXU
EIM
EXU-IAP
EXU-EMU9
MTU Engine Diagnostic Tool DiaSys New features:
* ECU-7, ECU-9: New function “Plants project identification”: Reads out and displays PU-run information from the ECU.
* ECU-9, SXU: PV recorder “Emission Status”: Reads out and displays emission status information from the ECU.
* SXU: PV-Recorder General: Reads out the configurable PV recorder from the ECU and displays it.
* EXU-ESD: Injector wear Upload and Export: Reads out information from the ECU injector wear and exports it to a CSV file.
* SXU: Support of crash recorder functionality analog to ECU-7/8/9.
* ECU-9, SXU: New function “hot shutdown counter resetfunction”.
* ECU-9, SXU: New function “NH3 HC count resetfunction”.
* ECU-9, SXU: New function “HC1 and HC2 load resetfunction”.
* ECU-7, ECU-9: Information about logged emergency starts are read out from the ECU and displayed .
* EXU-EMU9: New function “Splash oil calibration”

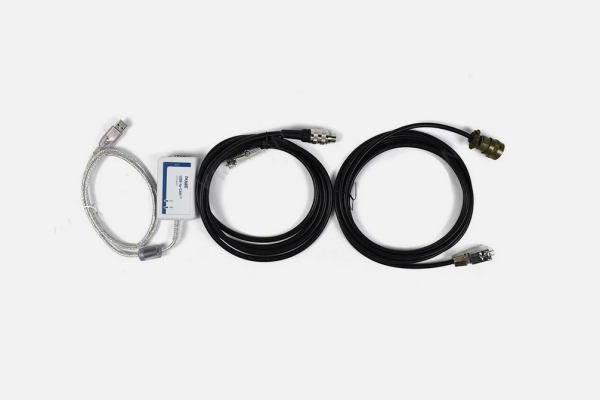

MTU Engine Diagnostic Tool DiaSys Packaged List:

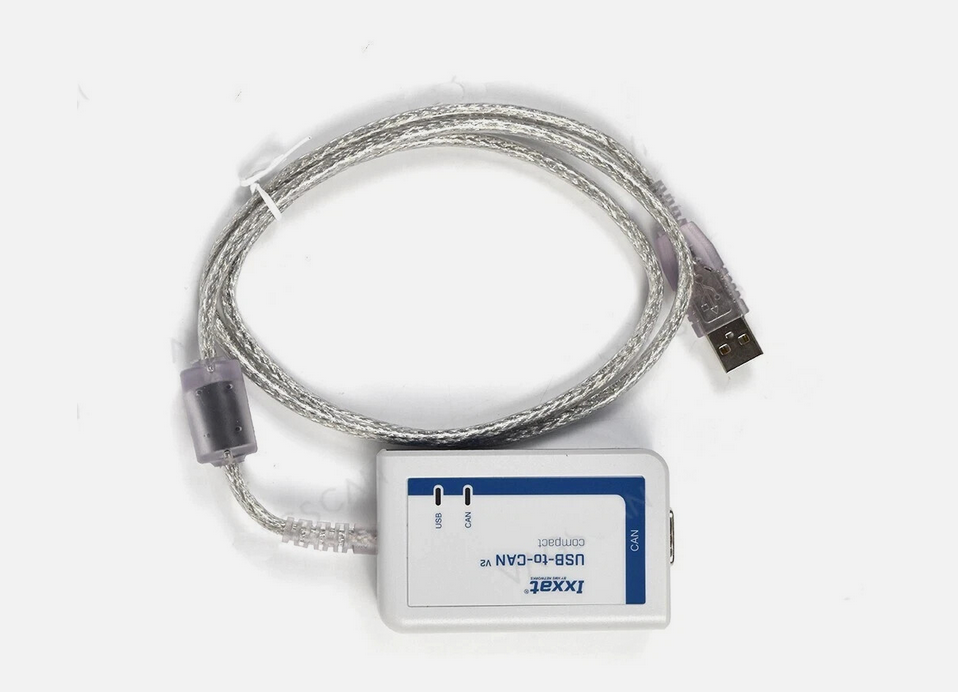

1 USB-to-CAN V2 Compact Interface

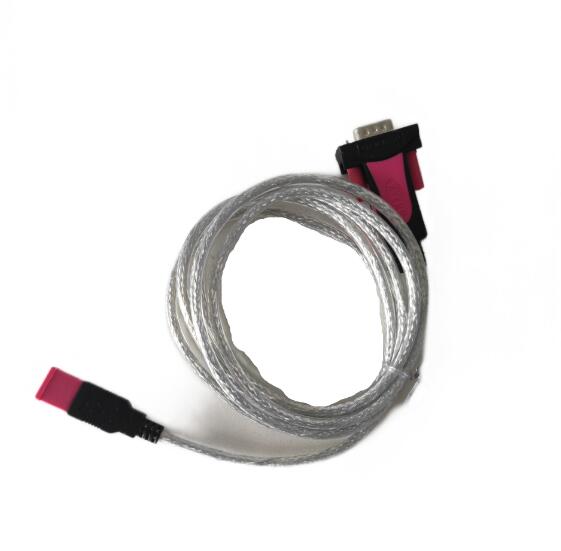

2 MDEC Cable (used for ECU2, 4 etc)
3 ADEC Cable (used for ECU 7,8,9)

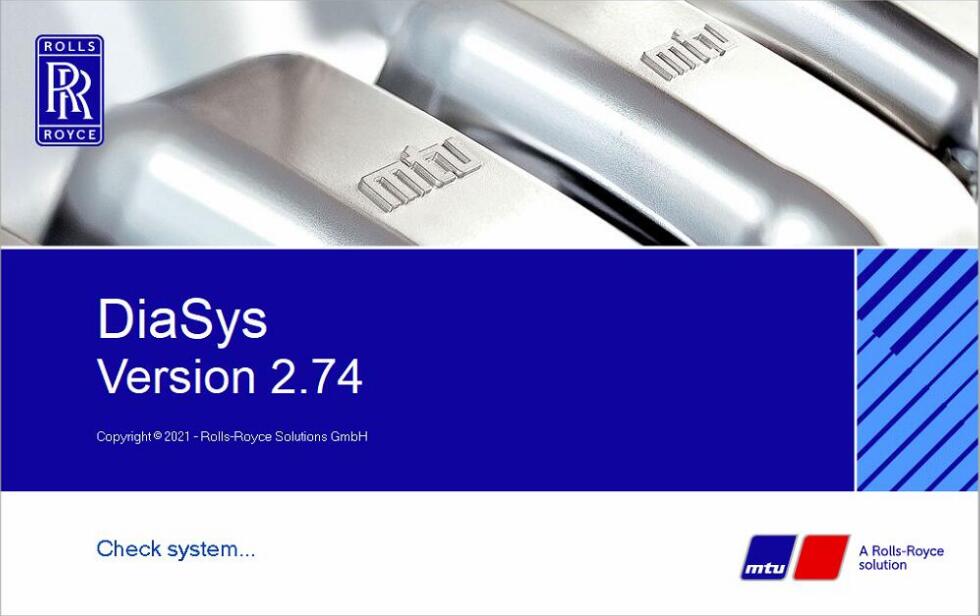

4 MTU DiaSys 2.74(install in one PC by teamviewer )
