Description
DOOSAN DIAGNOSTIC KIT (uVIM) – Doosan Diagnostic Tool is for the diagnosis of electronic fuel injection diesel engines.

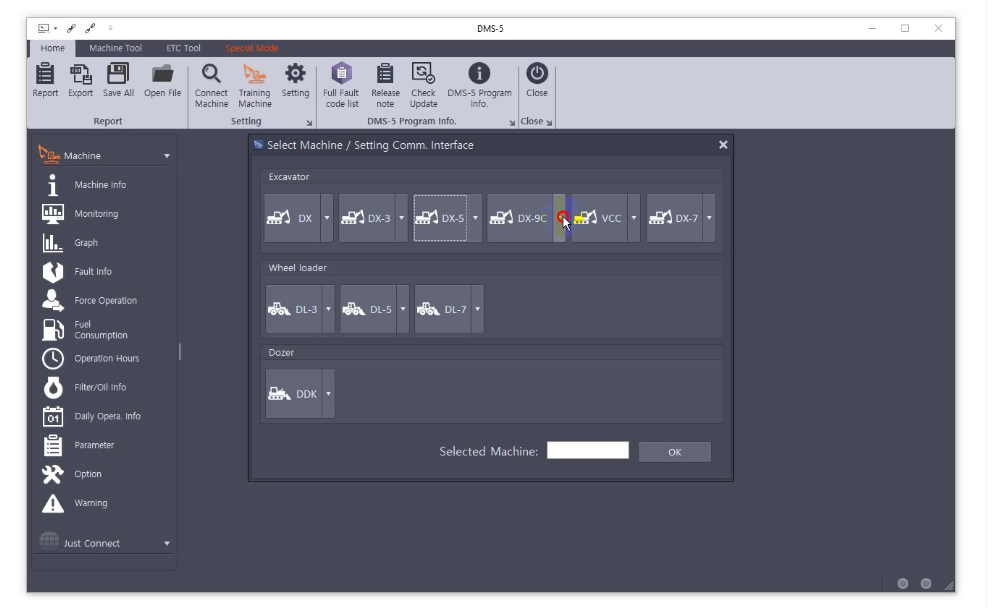

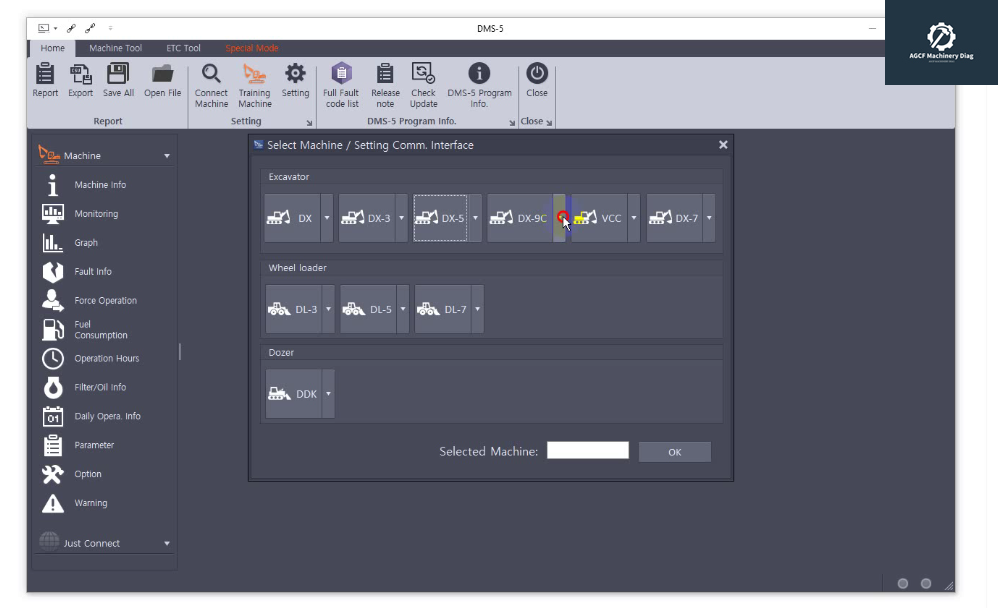

Doosan Monitoring System DMS controller is mounted on excavator Or VCU controller mounted on the wheel loader, and the engine controller provides the following function using the communication between the (ECU) and an IBM, -In function is a function to function as an engine for the device to distinguish and, Each feature is configured to automatically screen depending on the connected model.
Doosan CARNICS UVIM DMS-5 Features:
Size:about 230MB
Date:2025.04

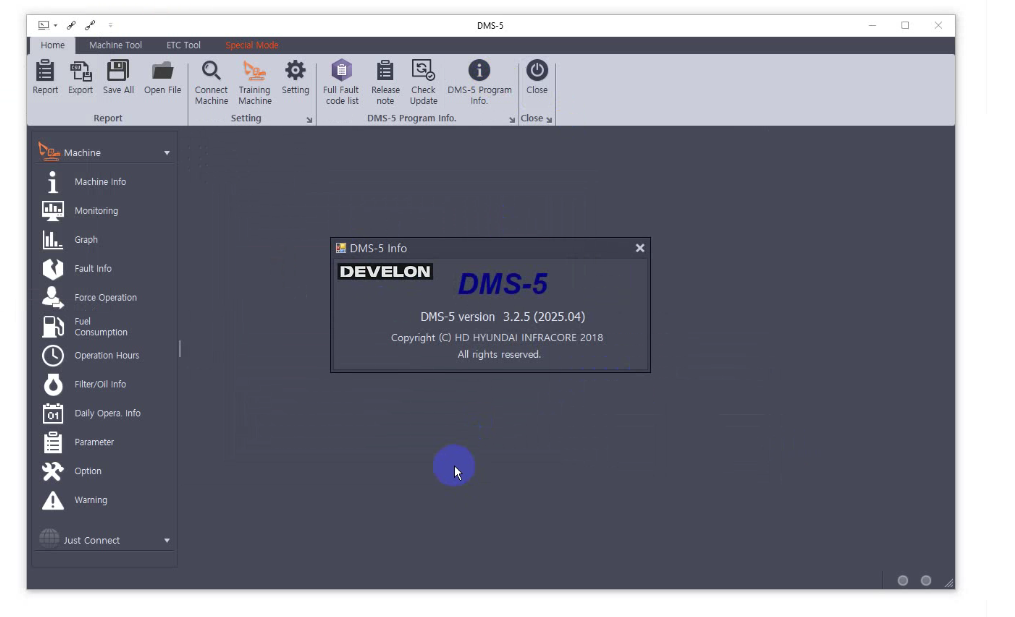

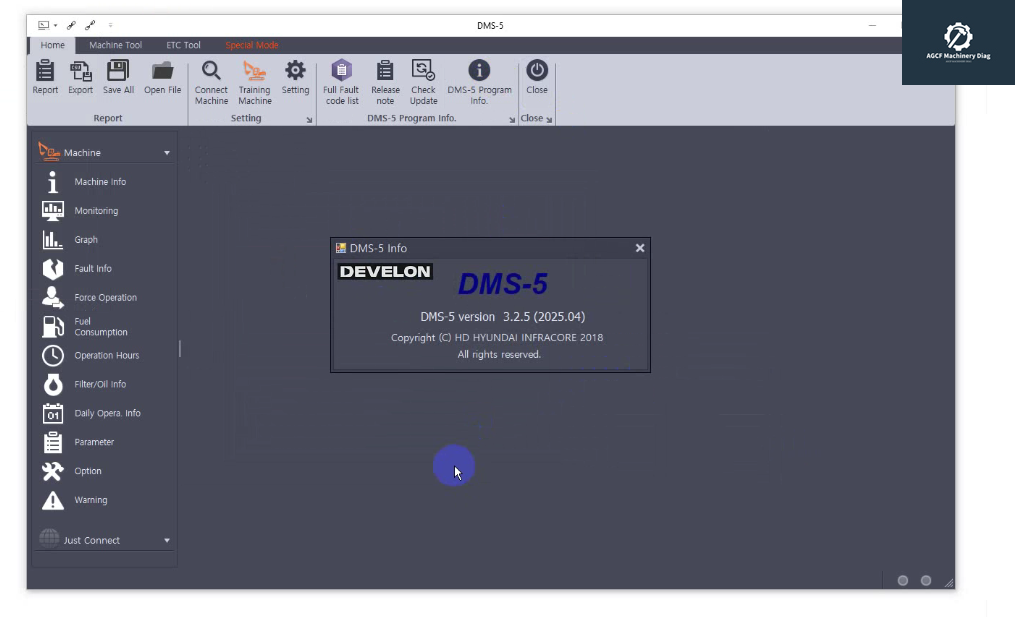

Version:3.2.5
Regions:Worldwide
Languages:Korean,Chinese,English,Spanish,Russian,Portuguese,French,Dutch
High quality
Free shipping by DHL/Fedex/UPS
Doosan CARNICS UVIM DMS-5 Functions:
Engine Fault Codes / Description / TSG.
Service Data Monitoring (Data Loging).
Engine and Electric Sensor parameter displaying.
Engine Data Freeze Frame.
Engine Routine Test for trouble shooting and performance.
Parts On-Off Test.
Parts Replacement
ECU Map re-flashing.
ECU Information.
Parts On-Off Test.
EOL – Fuel Variant Coding.
Doosan CARNICS UVIM Compatible Software:
• Develon DMS-5 (with Trouble Shooting) [2024]
• DDT G2 Scan (DCU, ECU) [2024]
• DDT G2 Scan (LPG) [2024]
• DDT Stage V (T4F) [2024]
• DDT EURO6 Diesel [2024]
• DDT T3 (EDC7, EDC17) [2024]
• DDT TIER4 (SCR, DPF) [2024]
• DDT DL06/08 Stage V Scan [2024]
• DDT DX22 Scan [2024]
• DDT Marine [2024]
• DDT OH60 Scan (DCU, ECU) [2024]
• e-Doctor (EDIA) Construction [2024]
• e-Doctor (EDIA) Industrial [2024]
• Bobcat Engine Alanyzer (DCU, ECU)
• Bobcat Engine Alanyzer V2 (Stage V)
• Massey Ferguson Engine Alanyzer (DCU, ECU)
Doosan CARNICS UVIM Supported types TIER-3, TIER-4:
Forklift.
Excavator (CN).
Loader (SF, MF, EX-MF, LF).
Tool cat.
Model (Solar, DX, U, V, DL, H, K, C).
Doosan DMS-5 Release Note:
v3.1.7
1) Update VBO FEH correction graph label names
2) Modify notification message for small EPOS Update (based on
language settings)
3) Add monitoring item for VDK models
4) Include TCU Fault Code for Wheel Loader and ADT
v3.1.6
1) Fix: Graph Logging Functionality Issue.
v3.1.5
1) Fix: Graph Logging Functionality Issue.
v3.1.4
2) Add: CTL Firmware Update functionality.
3) Add: CTL Security features.
4) Add: CTL Parameter Writing functionality.
5) Add: GMEX 2.7-ton Engine Specifications (Kubota).
v3.1.3
Add: VBO / FEH Calibration Help, TSG File
v3.1.2
1) Fix: GMEX parameter error
2) Fix: Modify VBO Rectangular Item Names
v3.1.1
1) Fix: Automatic correction feature and logic error fixes for VBO
2) Fix: Modification of the past malfunction information deletion
function (removal of authorization restrictions)
3) Add: Addition of VBO VCC19 and 20 models
4) Fix: Enhancement of the reporting function
v3.1.0
1) Fix : execution error in CheckUpdate function.
v3.0.9
1) Add : a new CTL model
2) Add : Establish and deploy a BMS distribution system
3) Add : a feature to delete past fault codes for dealer authorization
4) Fix : Increase dealer authorization for engine diagnostic program
5) Fix : additional monitoring items and limit the number of
selections
6) Fix : execution error in engine diagnostic program (G2Stage5)
7) Fix : Graph function error.
v3.08
1) Fix : Brand change (DEVELON)
v2.9.7 *08.04.2022*
1.) Fixed graph loading error.
2.) Fixed VBO file loading error.
3.) Modified the graph funtion.
Doosan DMS-5 Support Model:
Solar Model:
Solar
DX Model:
DX110LCR
DX140W
DX140WE
DX140LCR
DX140LC
DX180LC
DX170W
DX190W
DX190WA
DX235LCR
DX220LC
DX220LCY
DX225LC
DX225LL
DX210W
DX255LCY
DX255LC
DX300LCY
DX300LC
DX340LC
DX350LC
DX350LCY
DX380LC
DX700LC
DX420LC
DX480LC
DX480LCA
DX420LCA
DX420LCA
DX340LCA
DX300LCA
DX480LCY
DX420LCY
DX380LCY
DX225LCY
DX340LCY
DX150LCY
DX225LCA
DX210
DX225LNC
DX225NLCA
DX260LCA
DX520LC
DX300LL
DX140W ACE
DX190WA
DX210WA
U Model:
DX140LC-3
DX140LCR-3
DX140W-3
DX170W-3
DX180LC-3
DX190W-3
DX210W-3
DX210LCR-3
DX225LC-3
DX255LC-3
DX300LC-3
DX340LC-3
DX350LC-3
DX350LCY-3
DX380LC-3
DX420LC-3
DX490LC-3
DX700LC-3
V Model:
DX140LC-5
DX140LCR-5
DX180LC-5
DX225LC-5
DX235NLC-5
DX235LCR-5
DX255LC-5
DX300LC-5
DX340LC-5
DX380LC-5
DX420LC-5
DX490LC-5
DX530LC-5
DX140W-5
DX170W-5
DX190W-5
DX210W-5
DX190WA
DX210WA
DX225NLCA
DX260LCA
V05
DX140W
DX220LCA
DX480LCA
DX420LCA
DX420LCA
DX340LCA
DX300LCA
DL Model:
DL
H Model:
DL200-3
DL250-3
DL300-3
DL300-3 (eMCV)
DL350-3
DL350-3 (eMCV)
DL400-3
DL400-3 (eMCV)
DL450-3
DL450-3 (eMCV)
DL550-3
DL550-3 (eMCV)
K Model:
DL200-5
DL250-5
DL300-5
DL300-5 (eMCV)
DL350-5
DL350-5 (eMCV)
DL400-5
DL400-5 (eMCV)
DL450-5
DL450-5 (eMCV)
DL550-5
DL550-5 (eMCV)
C Model:
DX120-9C
DX220LC-9C
DX340LC-9C
DX380LC-9C
DX420LC-9C
DX500LC-9C

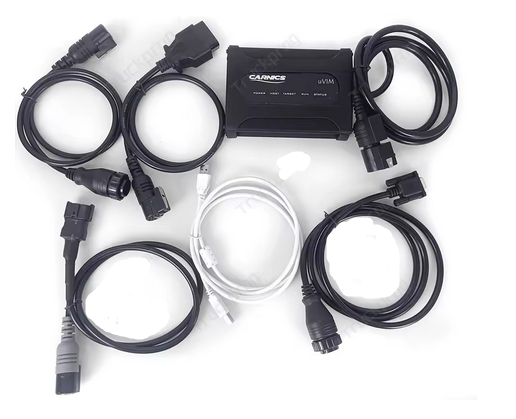

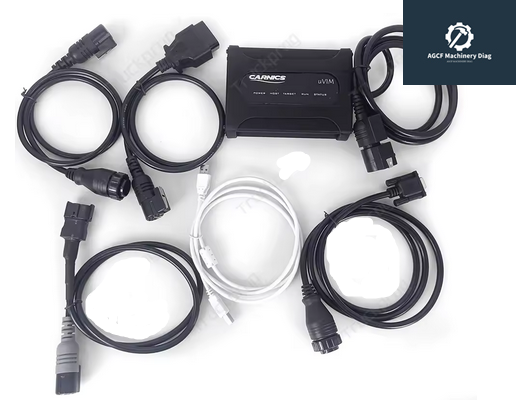

Doosan CARNICS UVIM Package Included:
- uVIM Communication Interface• USB cable
• 8-pin cable
• 14-pin cable (new Stage V)
• DB9 to 14-pin cable (RS232 connection)
